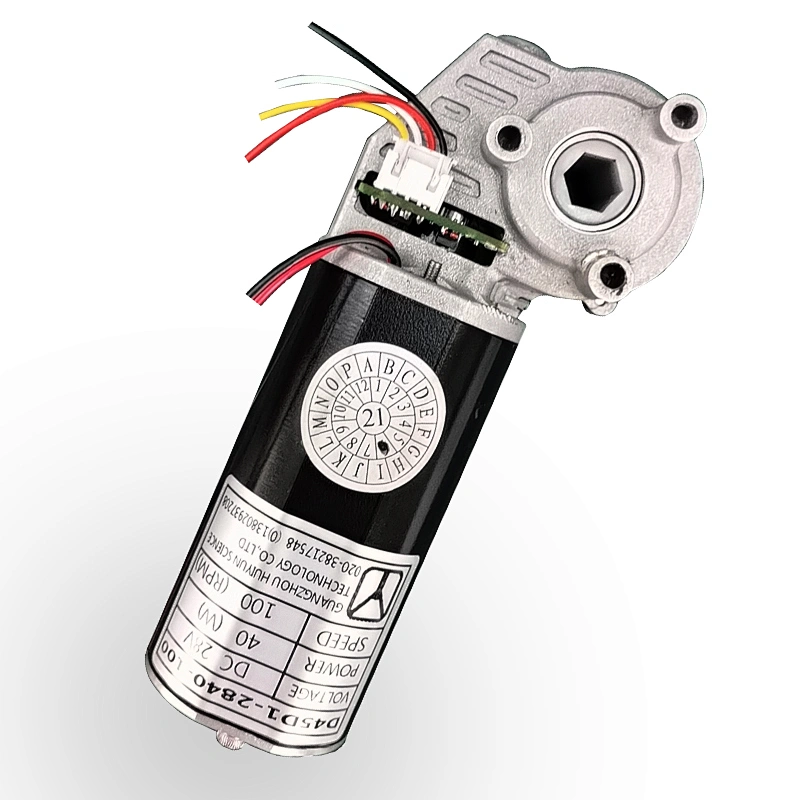

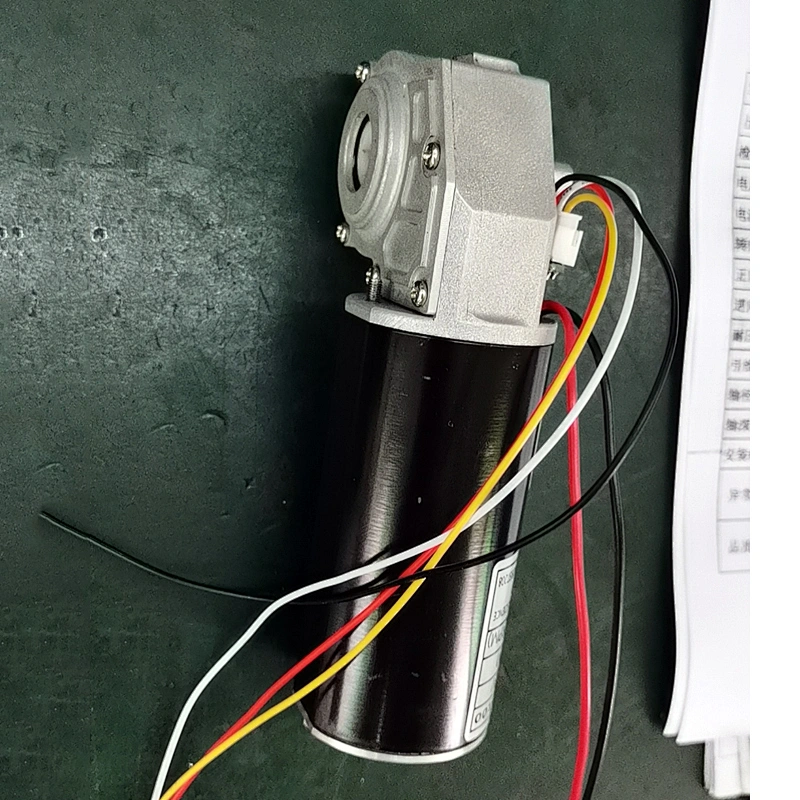

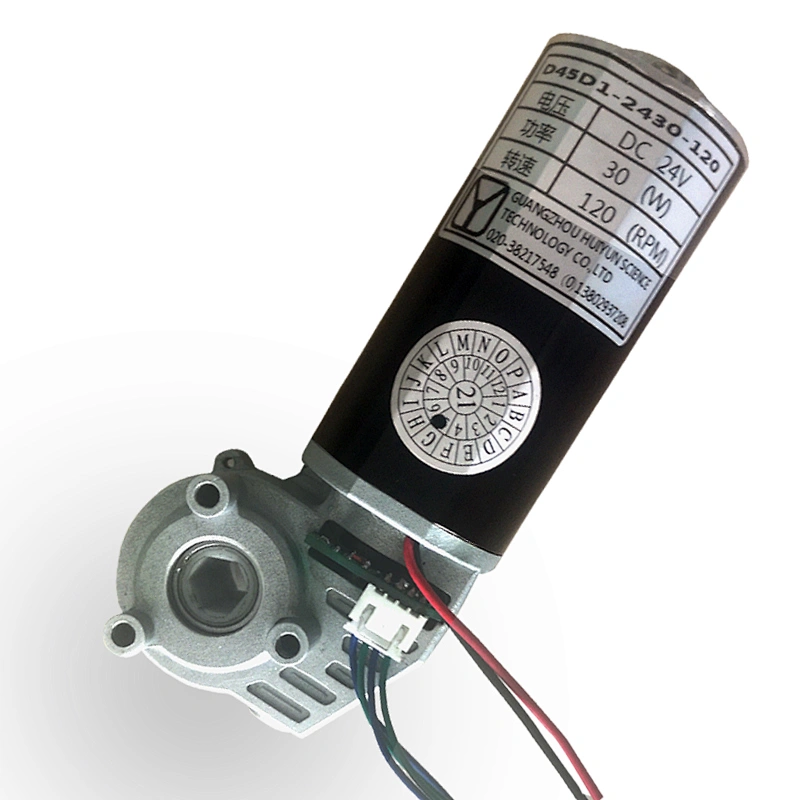

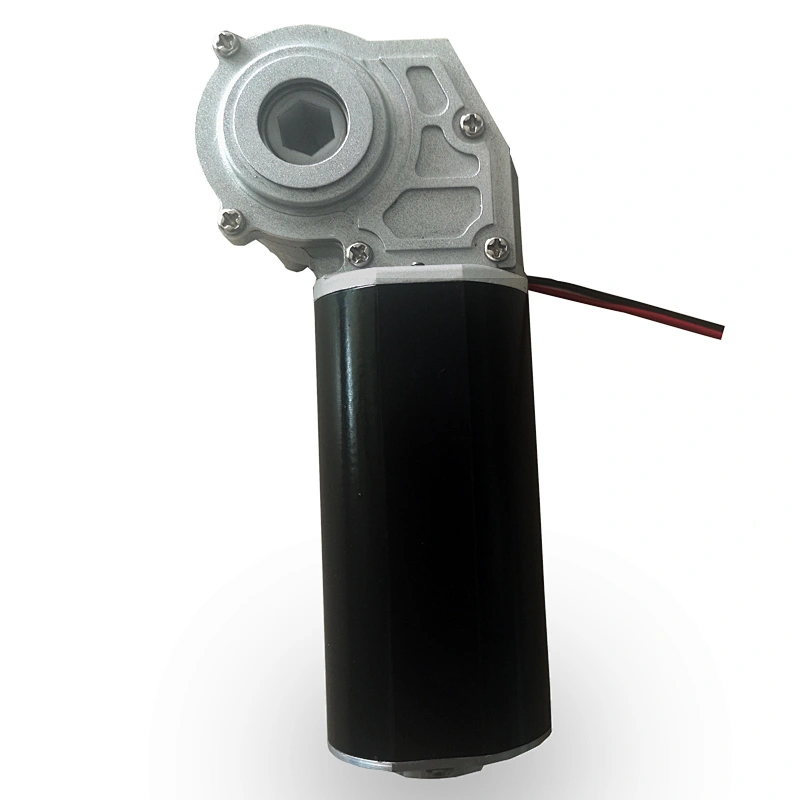

45mm Worm Geared Sit Stand Desk Motor
How to define a good electric height adjustable desk motor?
Lift Table Motor Specifications:
A good motor will be more excellent in the chip control system of lifting,which is manifested in the lower delay of lifting start and stop,the shorter time-consuming from static to maximum speed during lifting,and the higher desktop stability during lifting .
How to define a good electric height adjustable desk motor?
- Low voltage permanent magnet dc gear motor,the operating voltage is lower than 36v.
- High temperature resistant design of the inner core to ensure stable operation of the motor.
- Internal independent control chip,overload and overheat protection function,effectively prolong the service life of the motor.
Lift Table Motor Specifications:
| Motor Type | Gear Motor 24V |
| Motor Model | D45D1-2430-120 |
| Motor Diameter | 45mm |
| Voltage | DVC 24V |
| Power | 30W 40W |
| No-load Speed | 100±5 RPM |
| No-load Current | ＜1.5A |
| Load Torque | ＞2N.m |
| Gear Ratio | 45:1 43:1 |
| Stall Torque | 15-30N.m |
| Motor Usage | Electric Table Lift Motor |
